您當前的位置：首頁產品中心Dwyer 平均風速傳感器 MAFS系列

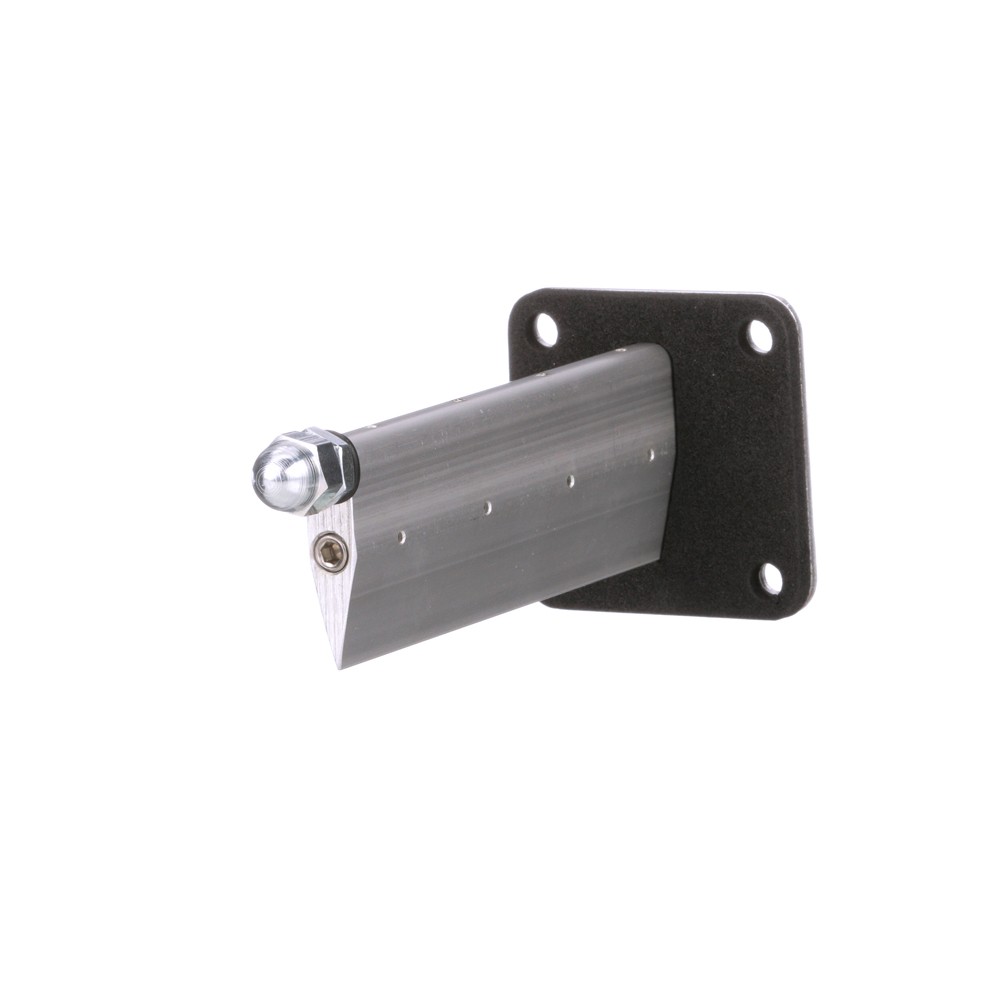

Blade Profile Provides Enhanced Performance and Minimal Flow Disruption

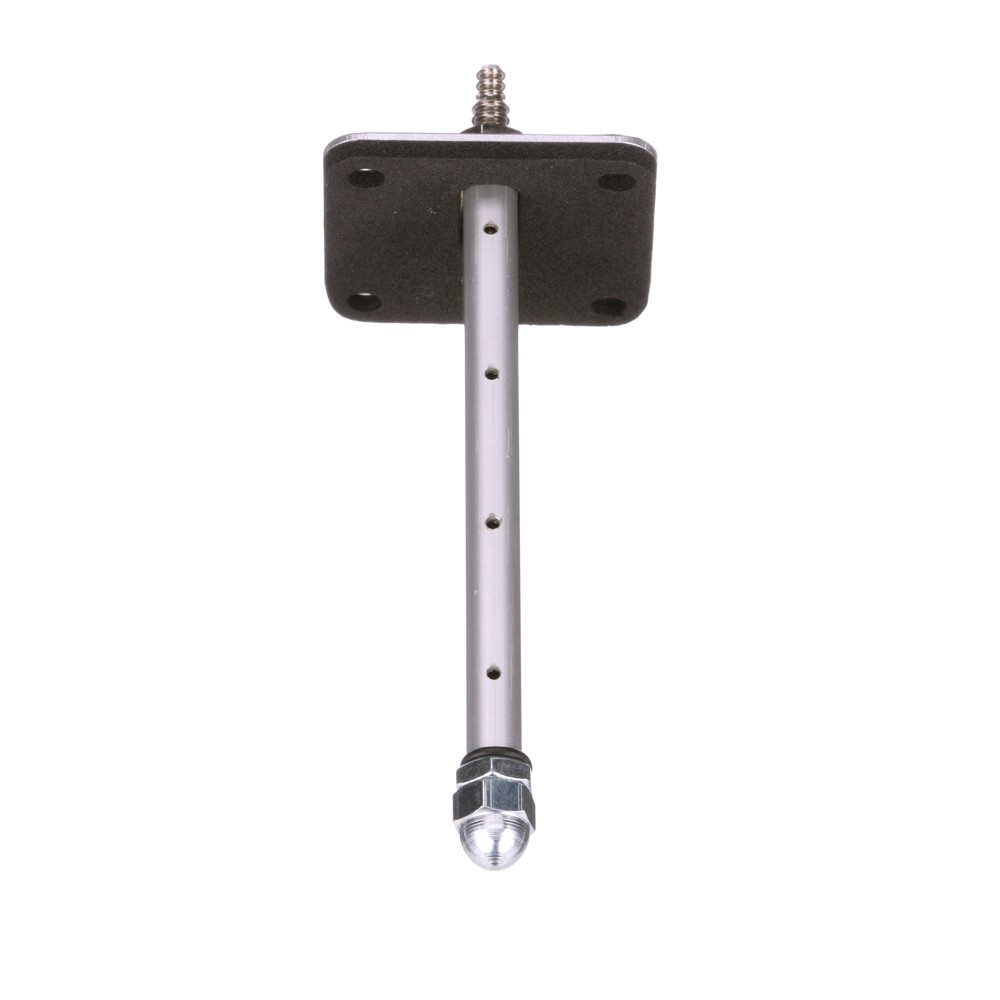

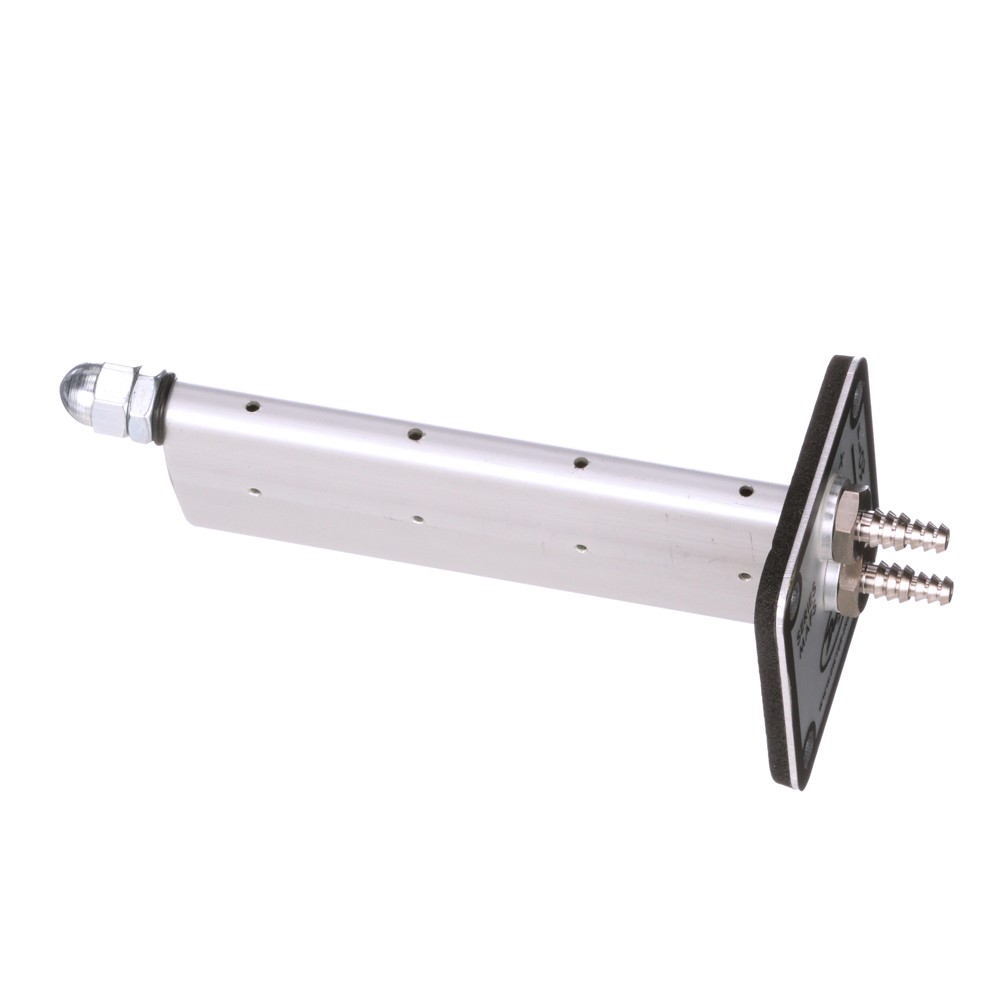

MAFS系列金屬平均流量傳感器非常適合與Dwyer Instruments, Inc.精密風速計，變送器和開關一起使用。MAFS系列采用均勻分布的總壓力和靜壓測量點，可以準確測量管道內的速度壓力。
應用及案例
? VAV air flow measurement
? Fume hood exhaust flow verification
? HVAC retrofit air flow measurement
產品特色
? Blade design limits disruption of air stream
? Lightweight aluminum construction

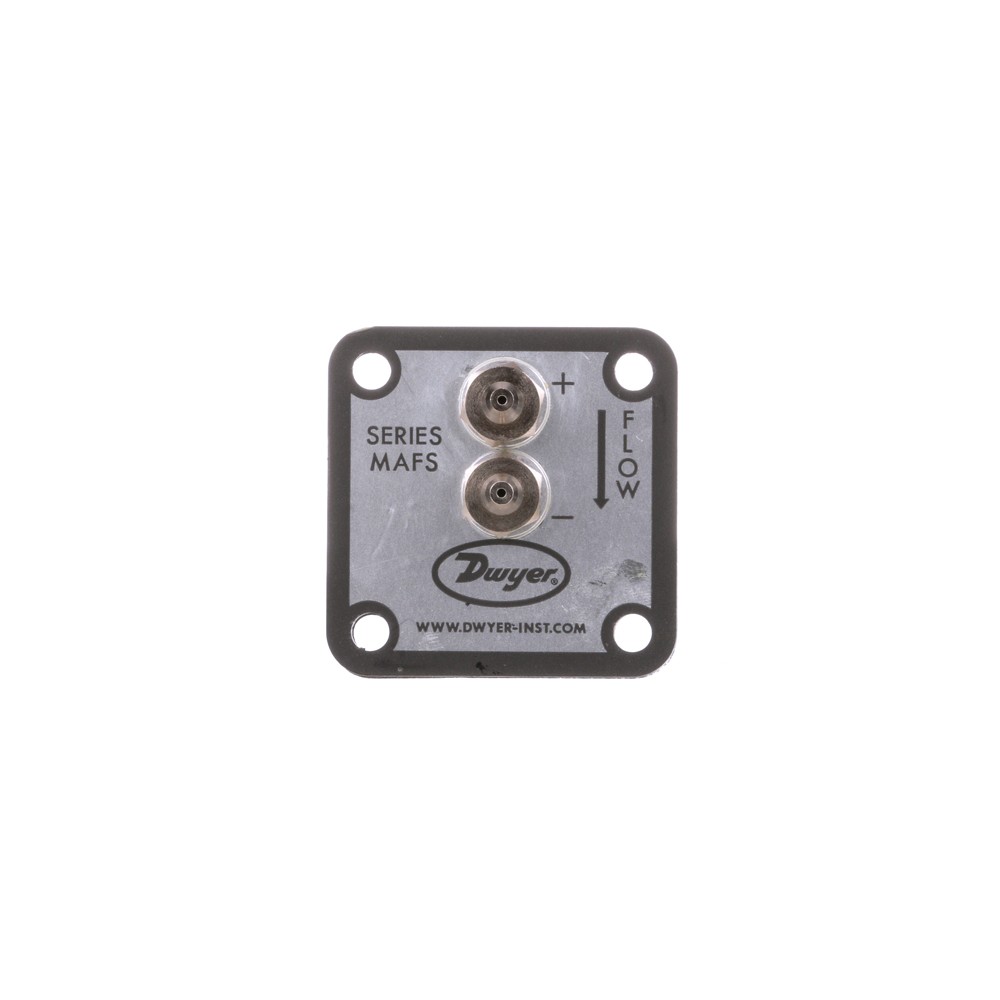

? Flange mount for rectangular or square ducts
Service:Clean air.
Wetted Materials:Aluminum AA6063.
Accuracy:400 to 9000 FPM (45.7 m/s): ±2% FS; ±3% FS for 6" and 48" length models.
K-Factor:0.81, 0.80 for 6" (160 mm) and 48" (1200 mm) lengths, 4" (100 mm) length=0.82.
Max. Temperature:400°F (204°C); Gasket: -31 to 230°F (-35 to 110°C).
Minimum Design Flow:400 fpm (2 m/s).
Maximum Design Flow:12,000 fpm (60.91 m/s).

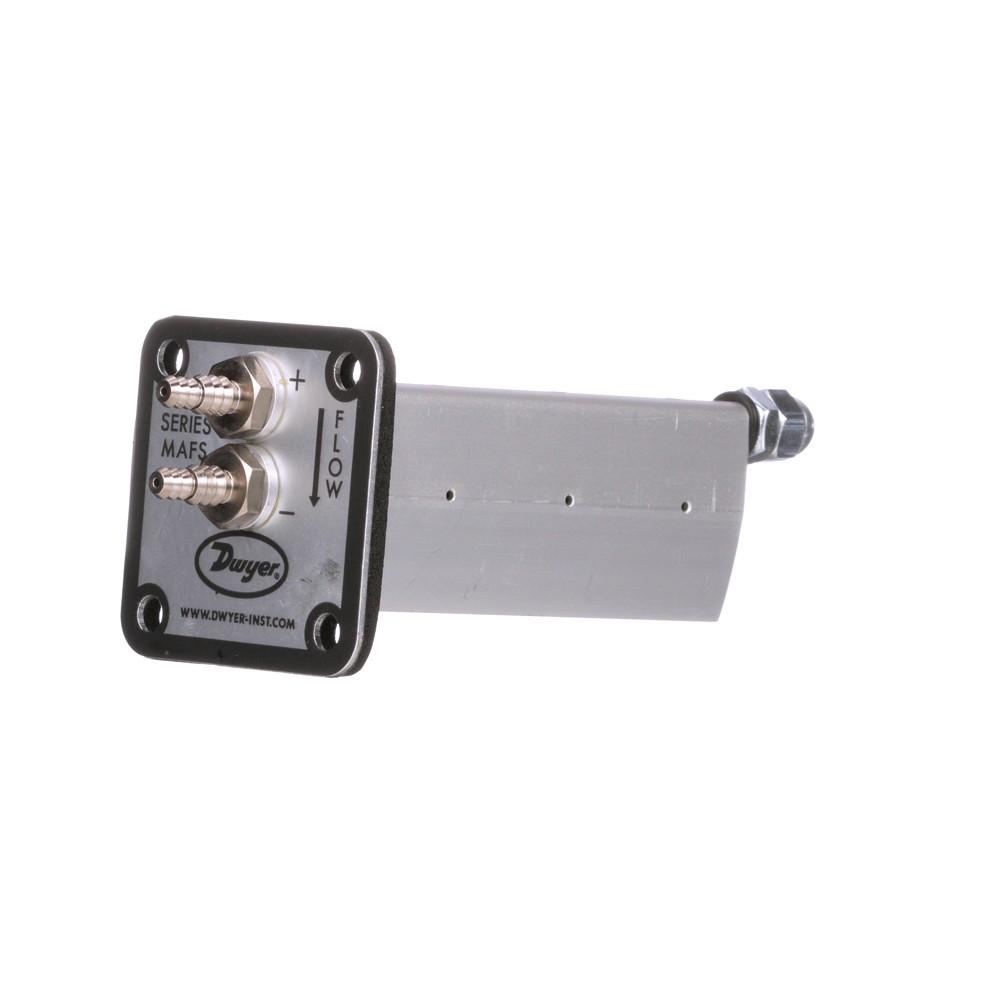

Process Connections:Dual barb for 3/16" or 1/4" ID tubing.
Straight Run Requirements:5 diameters or longest side dimensions.
Agency Approvals:Meets the technical requirements of EU Directive 2011/65/EU (RoHS II).
